INSULATION REDEFINED

Total Protection from Summer & UV Rays with ELEXIQ COOLGUARD® Pre-Insulated Roofing Sheets. World Class High Standard XLPE Insulation for superior thermal performance.

GET A QUOTE TODAY

ABOUT US

Pioneers in thermal insulation technology with innovative roofing solutions

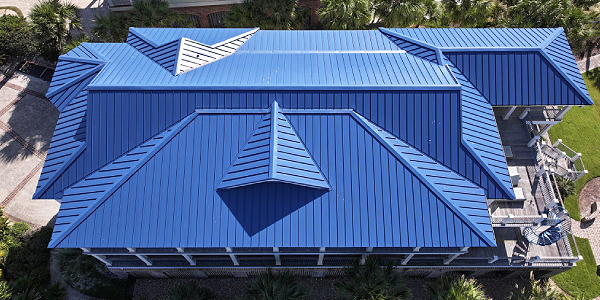

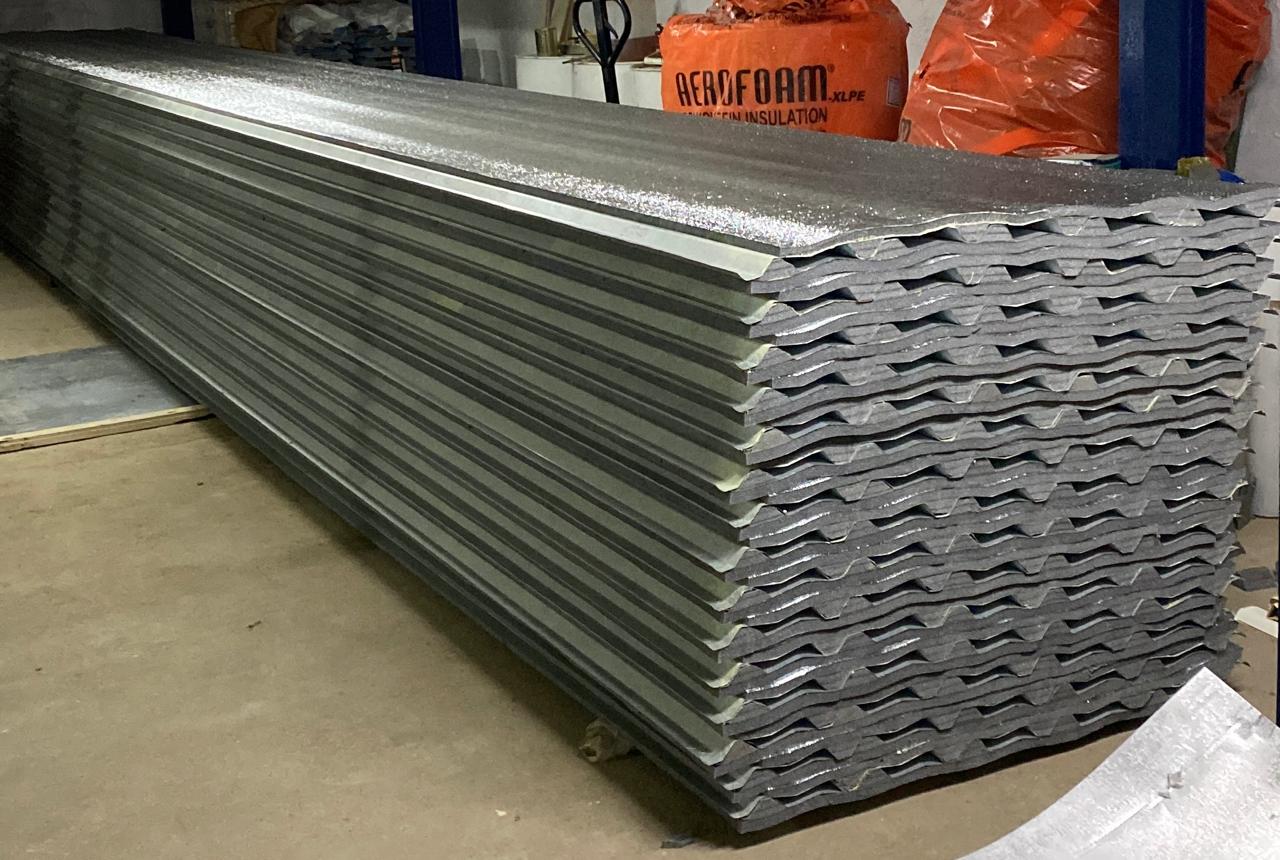

ELEXIQ Roofing Installation

PIONEER IN THERMAL INSULATION

ELEXIQ COOLGUARD® is Pre-Insulated Roofing Sheets with 3 Layer protection. The Roof sheet has been Insulated with World Class High Standard XLPE Insulation. The XLPE (Chemically Crosslinked Polyolefin / polyethylene Thermal Insulation Foam) has been specially designed for Outdoor applications to control condensation, energy losses and block sound propagation.

The Foam comes in grey colour laminated with Alupet Foil where the Foil is also additionally protected with Pet Layer facing with material density of 30 kg/m³. COOLGUARD® delivers an outstanding performance with the combination of High Standard Insulation and Alupet Foil.

Quality Assurance

ISO certified manufacturing process

Expert Team

Technical expertise since 2005

PRODUCT FEATURES & COLORS

Comprehensive insulation solutions with aesthetic color options

Key Features of ELEXIQ COOLGUARD®

Maintain Temperature

Stable indoor climate year-round

UV Resistant

Excellent protection from sun rays

Fire Resistant

HF-1 flammability rating, Class 1 fire spread

Sound Insulation

Blocks noise propagation effectively

Additional Benefits

Controls Moisture

Prevents condensation and dampness

Easy Installation

Quick and hassle-free setup

Economical

Cost-effective long-term solution

Faster Availability

Quick delivery across India

Available Color Palette

Sky Blue
Royal Blue
Mist Green
Caulfield Green
Autumn Red
Terracotta Red
Off White
Bare

TECHNICAL DATA & SPECIFICATIONS

No. Characteristic Test Result Method
1 Density 30 Kg/m³ ISO 845 1988 (E)
2 Emissivity Aluminium Foil 0.03 ASTM C1371
3 UV Resistance Excellent -
4 Chemical Resistance Excellent with AI Foil ASTM D-543/BS 4618
5 Temperature Range -40°C to 115°C DINEN 14706 / ASTM C411
6 Heat Resistance (R-Value) 3.0m³ MK/W ASTM C236
7 Thermal Conductivity @ 0°C 0.03 W/MK ASTM C-177
8 Water Absorption [Kg/m³] 0.05 ASTM D 1056 -98
9 Flammability HF-1 UL-94
10 Water Vapour permeance (28 days) 6x10-9 g ASTM E-96
11 Foam Tensile Strength (N/m²) Min 25 BS 4370 Part 2
12 Dimension Stability No Visible Changes observed BS 4370 Part 1
13 Fire characteristic a. Surface spread of flame Class 1
b. Fire Propagation Class 0
(For both plain & foil faced material)		 BS 476 Part 687
Note: All technical specifications are based on laboratory tests and quality control standards. Actual performance may vary based on installation conditions and environmental factors.

OUR OFFERINGS

Comprehensive range of pre-insulated roofing solutions for various applications

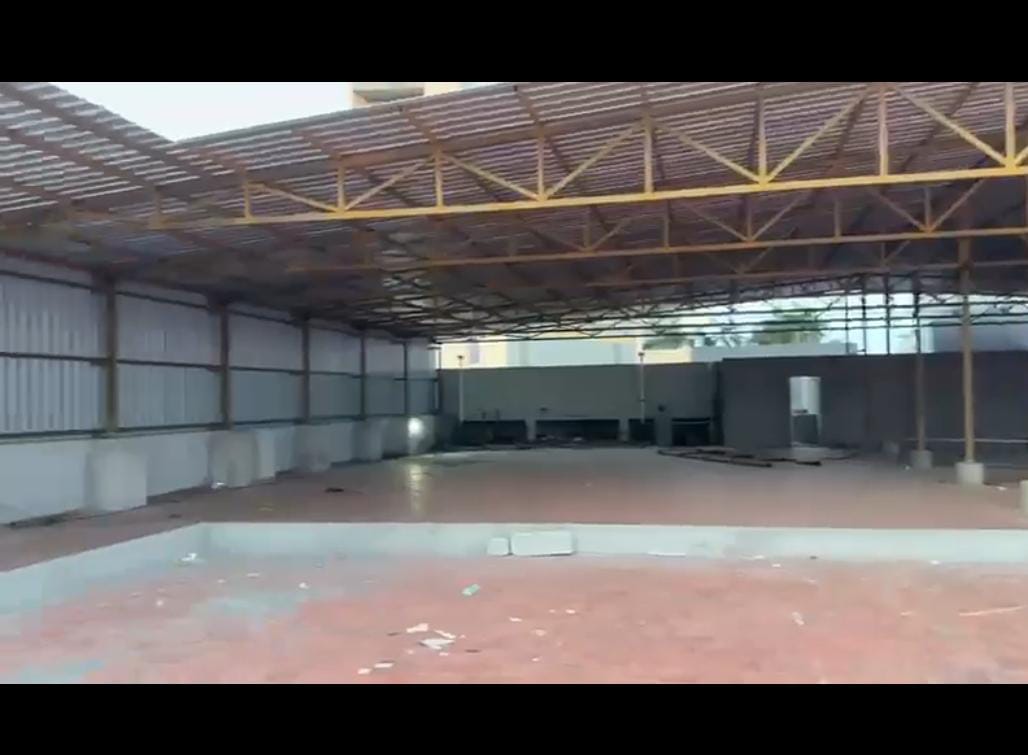

Industrial Roofing

Pre-insulated sheets for factories, warehouses, and industrial buildings with superior thermal and acoustic insulation.

  • Energy efficient
  • Soundproofing
  • Durable construction

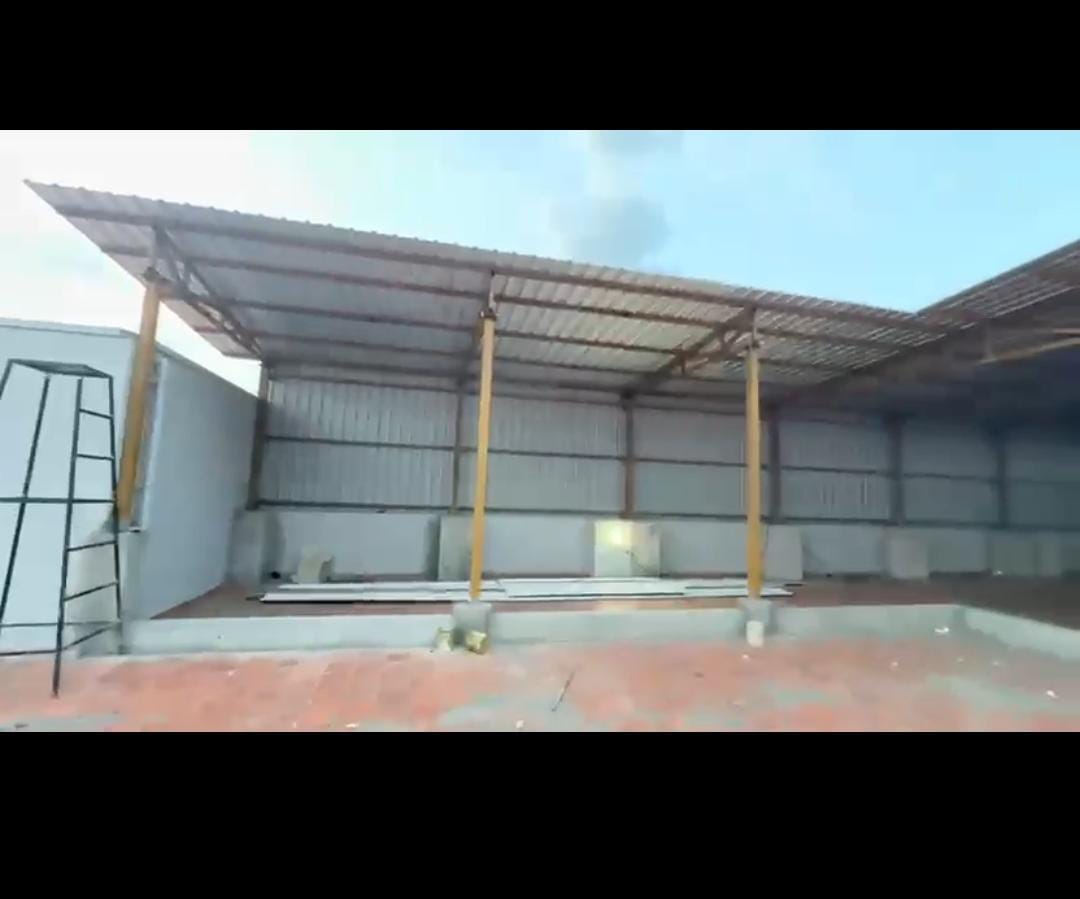

Commercial Buildings

Insulated roofing for malls, multiplexes, offices, and commercial complexes with aesthetic appeal and functionality.

  • Multiple color options
  • Thermal comfort
  • Cost savings on HVAC

Residential Quarters

Insulated roofing solutions for residential buildings, apartments, and housing complexes for comfortable living.

  • Temperature control
  • Noise reduction
  • Energy savings

Automobile Sector

Specialized insulated sheets for automobile workshops, showrooms, and manufacturing units.

  • Heat resistance
  • Dust protection
  • Custom sizes

Construction Ducting

Insulated sheets for HVAC ducting, ventilation systems, and specialized construction applications.

  • Condensation control
  • Thermal efficiency
  • Easy fabrication

Spinning Industries

Specialized insulation for textile and spinning industries requiring controlled temperature environments.

  • Humidity control
  • Temperature stability
  • Hygienic surfaces
Sheet Compatibility

Can be supplied with any types of Roofing Sheets - Trapezoidal, Cladding & Curved Sheets. Colour Coated Sheets available in Galvalume / Aluminum with Insulation.

PRODUCT SPECIFICATIONS

Technical details and specifications of ELEXIQ COOLGUARD® Pre-Insulated Sheets

Parameter Specification
Brand ELEXIQ COOLGUARD
Type Pre-Insulated Roofing Sheet
Sheet Length (feet) Up to 40 feet (Customization available)
Total Coated Thickness (mm) 0.40 / 0.45 / 0.47 / 0.50
Effective Cover Width 1000 ±4mm
Overall Width 1070 ±10 mm
Foil Thickness ALUPET FOIL - 40 Microns | METPET FOIL - 12 Microns
Foam Density 30 Kg/m³

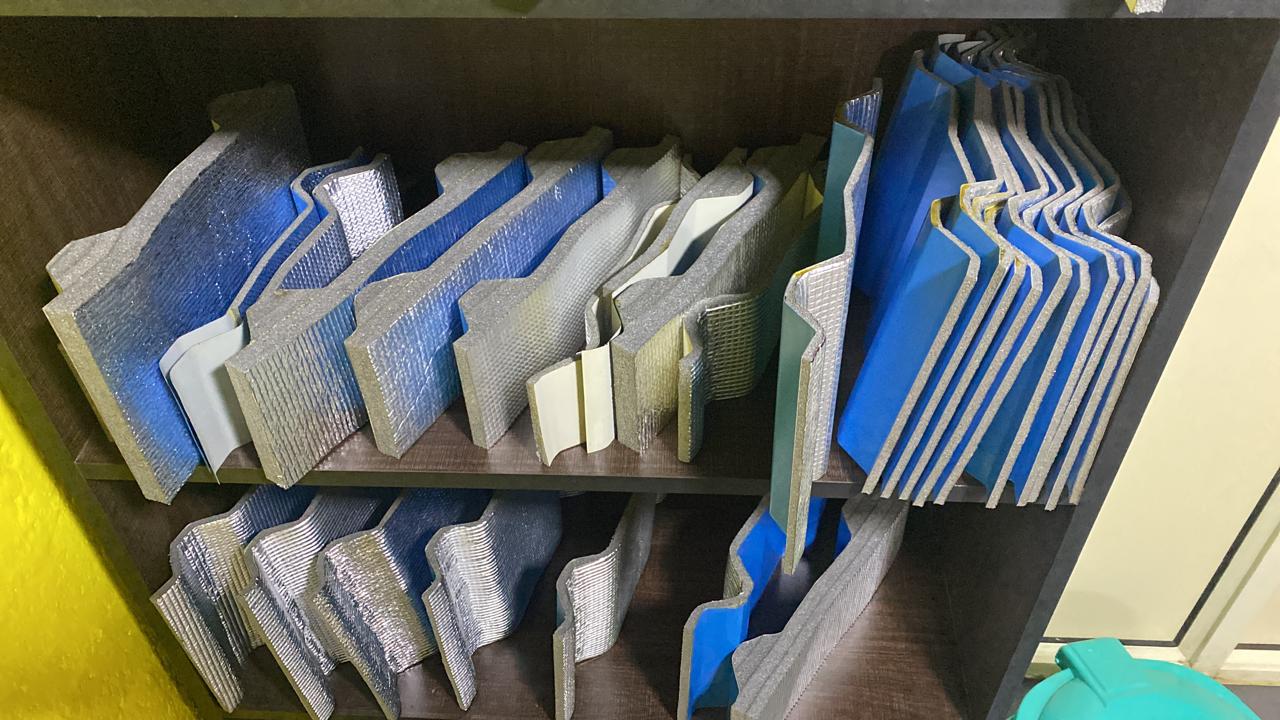

Insulation Thickness Ranges 06mm, 09mm, 13mm, 19mm, 25mm, 32mm, 40mm
Note:

Sheet length customization available on request. Insulation sheets all colours available on request with Minimum Order Quantity (MoQ).

Technical Standards:

All products manufactured adhering to ISO, ASTM, BS, and DIN standards for quality assurance.

CONTACT US

Get in touch for quotations, technical specifications, and product information

Send Us a Message

ELEXIQ ECOTEK

Manufacturers of high-quality pre-insulated roofing sheets with world-class XLPE insulation technology.

Address

99/5B, MGR Main Road, Nagalkeni,
Chromepet, Chennai, Tamil Nadu, India - 600044

Connect With Us
Applications

ELEXIQ COOLGUARD® is used in Roofing, Cladding, Construction Ducting Soundproof, Automobile Sectors, Spinning Industries, Multiplex, Residential Quarters, Malls etc.
